Lewis LHP S4 Axial Cylinder 4 Pistons Hydraulic Disc Brake With Cooling Fins

Downhill & Enduro

Material: 7075 T6 Aluminum

Piston: 4 pistons (2x14mm, 2x17mm)

Mineral Oil

Three Adjustment For LEVER REACH & BITE POINT & LEVERAGE RATIO

Independent cooling fins design for better high temperature performance

Removable Olives used in Anti-oil loss system connector

Upgraded leverage ratio adjustment knob

Single brake weight: 249g (without oil hose and brake pads)

Single brake lever: 98g

Single caliper: 151g( without brake pads)


Retail Price: US$439 per set (Front +Rear Brakes)，Tax Excluded



Worldwide Dealers Wanted

For purchasing more matching brakes, please click on "Inquire now" to leave us a message.

Inquire now
Add to cart
Share To:
Technology
  • Newly Upgraded Levera'geage Ratio Adjustment System
    Newly Upgraded Levera'geage Ratio Adjustment System

    The LHP brake lever adopts a newly upgraded leverage ratio adjustment system, which has a better adjustment experience.

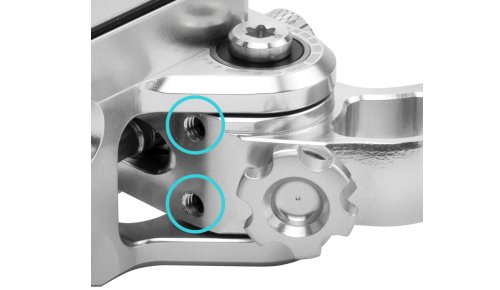

  • Leverage Ratio Adjustment
    Leverage Ratio Adjustment

    Loosen the lever ratio set screws and adjust the Lever ratio by turning the lever ratio adjustment knob.

    Tighten the set screws after adjustments.

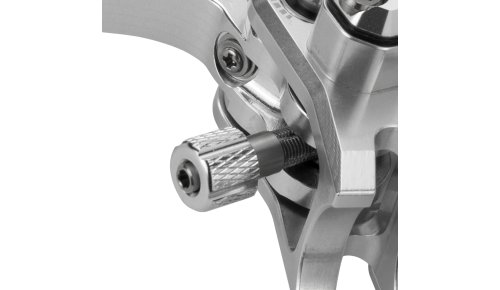

  • Dual Adjustment Of Lever Reach & Bite Point
    Dual Adjustment Of Lever Reach & Bite Point

    The LHP lever features a patented technology for dual adjustment of Lever reach & bite point, combined with a new lever ratio adjustment system, for an incredible range and freedom of adjustment.

  • Independent Cooling Fins
    Independent Cooling Fins

    Cooling Fins for better heat dissipation performance

  • Anti-Leak Oil System
    Anti-Leak Oil System

    Use Anti-leak oil system, which makes disassembly and assembly and internal wiring easier.

  • Standard Split Clamp With Upper And Lower Locking Design
    Standard Split Clamp With Upper And Lower Locking Design

    Standard Split clamp with upper and lower locking design improves the fault-tolerant of clamp installation and meets the requirements of handlebar designs with different tolerances.

    Torque: 3Nm

  • Stainless steel Pistons
    Stainless steel Pistons

    2x14mm, 2x17mm Stainless steel Piston with Insulation Layer

SPECIFICATIONS
MASTER CYLINDER
TypeAxial
Material CNC 7075T6 Aluminum
Body Finish Black, Silver
Clamp Color Black, Silver
Clamp Type Split
ScrewsStainless Steel
Adjustable Lever ReachYES, Tool Free
Adjustable Pad Bite PointYes, with 2mm Allen key
Adjustable Leverage Ratio1.5mm Allen Key to loosen the set screws first


LEVER BLADE
Material CNC 7075 T6 Aluminum
Color Black, Silver
Brake lever version1 Finger


CALIPER
Material CNC 7075T6 Aluminum
Color Black, Silver
MOUNT TYPEPost mount
Piston 2x14mm, 2x17mm Stainless steel Pistons
ScrewsStainless Steel
Pads type Sintered TP-37 and Semi-Metallic LP-37


Hose
Hose size Outside Diameter 5mm，Bore 2.2mm
Hose length 90cm front /160 cm rear
Hose finish Black, Braided T200 Oil Hose
INTENDED USEEnduro, Downhill, All-Mountain
Rotors Not included, optional (140 mm | 160 mm | 180 mm | 203 mm | 223 mm)
AdapterNot included
WEIGHTLever 98g, Caliper 151g (without brake pads)
OilMineral oil
Bleed Kit RecommendationLewis Bleeding Kit
